Panasonic Electronic Components

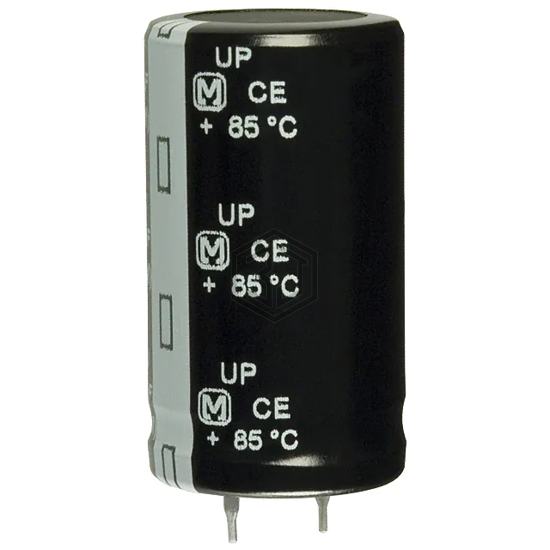

CAP ALUM 180UF 20% 450V SNAP
ECO-S2WP181CX is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,793
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 921mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WP181CX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH401VSN181MQ35S | United Chemi-Con | CAP ALUM 180UF 20% 400V SNAP | 95% | View |
| LDM2G181MERZGA | Nichicon | CAP ALUM 180UF 20% 400V RADIAL | 95% | View |
| B43231B9187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 94% | View |
| 187LBB400M2CE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 180UF 20% 400V SNAP | 94% | View |
| 861021485023 | Würth Elektronik | CAP ALUM 180UF 20% 450V SNAP | 90% | View |
| B43508A5187M60 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 90% | View |
Submit your RFQ for ECO-S2WP181CX and get a quote within 24 hours.
