Panasonic Electronic Components
CAP ALUM 150UF 20% 450V SNAP

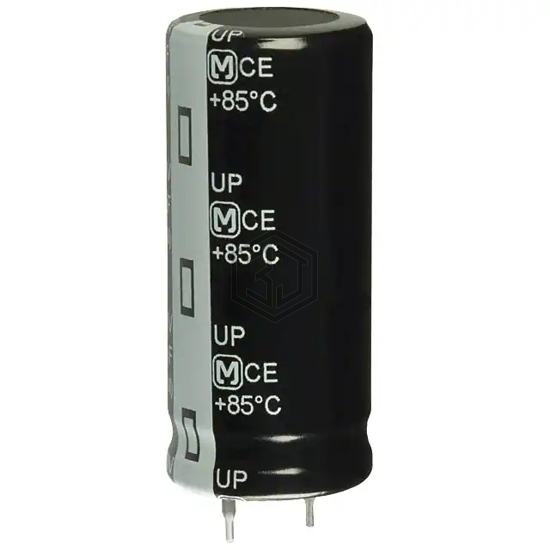

ECO-S2WP151BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 90
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 1.105Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.666 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for ECO-S2WP151BA and get a quote within 24 hours.
