Panasonic Electronic Components

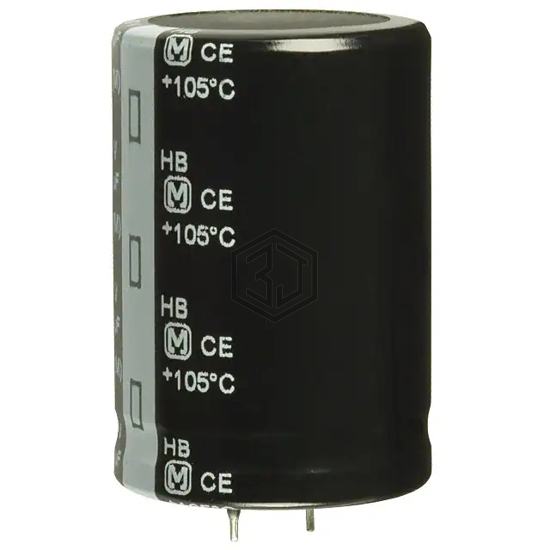

CAP ALUM 470UF 20% 450V SNAP
ECO-S2WB471EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,063
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 353mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.74 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.984 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WB471EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH451VNN471MA50W | United Chemi-Con | CAP ALUM 470UF 20% 450V SNAP | 95% | View |
| ELXM421VSN471MA50S | United Chemi-Con | CAP ALUM 470UF 20% 420V SNAP | 87% | View |
| B43544A6477M060 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 500V SNAP | 84% | View |
| ELXS251VSN471MQ30S | United Chemi-Con | CAP ALUM 470UF 20% 250V SNAP | 76% | View |
| 180VXR470MEFC30X25 | Rubycon | CAP ALUM 470UF 20% 180V SNAP | 72% | View |
| B43508G2477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 250V SNAP | 66% | View |
Submit your RFQ for ECO-S2WB471EA and get a quote within 24 hours.
