Panasonic Electronic Components

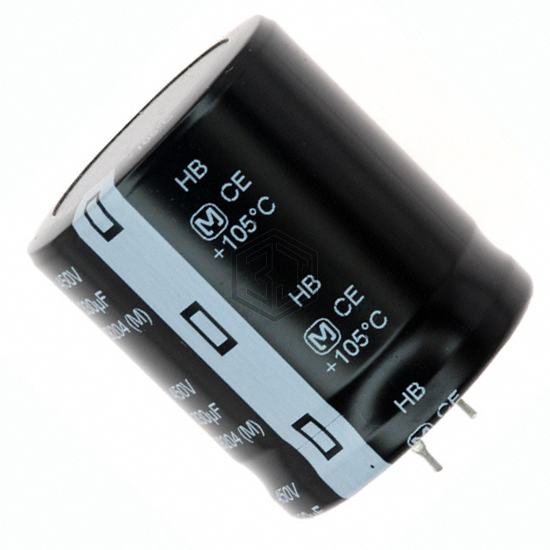

CAP ALUM 330UF 20% 450V SNAP
ECO-S2WB331EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 2,969
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 502mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.573 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WB331EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A9337M62 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 400V SNAP | 93% | View |
| EKMH401VSN331MA35S | United Chemi-Con | CAP ALUM 330UF 20% 400V SNAP | 91% | View |
| B43505A5337M002 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 450V SNAP | 91% | View |
| 381LX331M160K202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 160V SNAP | 68% | View |
| EY1K331MP51225ER | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 65% | View |
| MAL212017331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 40V AXIAL | 57% | View |
Submit your RFQ for ECO-S2WB331EA and get a quote within 24 hours.
