Panasonic Electronic Components
CAP ALUM 270UF 20% 450V SNAP

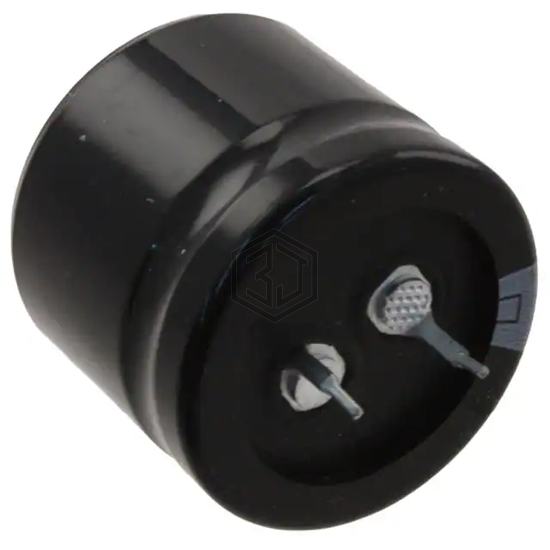

ECO-S2WB271DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,438
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 614mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.19 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.357 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WB271DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450VXR270MEFCSN35X45 | Rubycon | CAP ALUM 270UF 20% 450V SNAP | 95% | View |
| PX2W271MRD2540 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 95% | View |
| B43508A9277M67 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 94% | View |
| B43504B9277M67 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 400V SNAP | 93% | View |
| EEU-FS1K271 | Panasonic Electronic Components | CAP ALUM 270UF 20% 80V RADIAL | 74% | View |
| EKZE101ELL271MK30S | United Chemi-Con | CAP ALUM 270UF 20% 100V RADIAL | 65% | View |
Submit your RFQ for ECO-S2WB271DA and get a quote within 24 hours.
