Panasonic Electronic Components
CAP ALUM 180UF 20% 450V SNAP

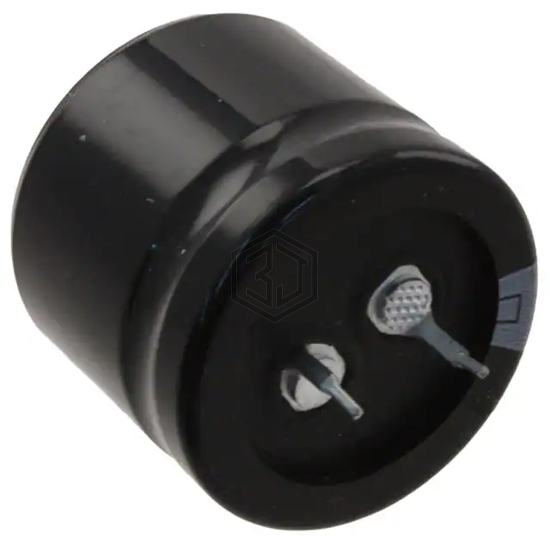

ECO-S2WB181DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 7,530
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 921mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 870 mA @ 120 Hz |
| Ripple Current @ High Frequency | 991.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WB181DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 861111483009 | Würth Elektronik | CAP ALUM 180UF 20% 450V SNAP | 92% | View |
| EKMZ451VSN181MQ25S | United Chemi-Con | CAP ALUM 180UF 20% 450V SNAP | 87% | View |
| LAR2G181MELZ35 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 87% | View |
| PL2G181MND2530 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 82% | View |
| B43544A7187M000 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 550V SNAP | 78% | View |
| 420VXS180MEFC25X35 | Rubycon | CAP ALUM 180UF 20% 420V SNAP | 76% | View |
Submit your RFQ for ECO-S2WB181DA and get a quote within 24 hours.
