Panasonic Electronic Components
CAP ALUM 120UF 20% 450V SNAP

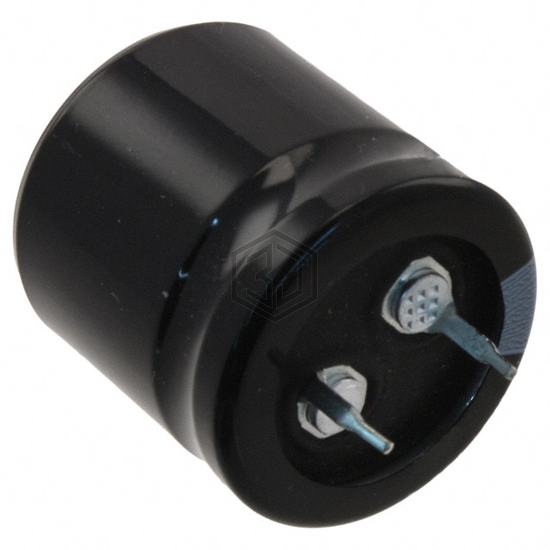

ECO-S2WB121CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 120UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 3,584
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 1.382Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 820.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2WB121CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504E127M62 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 420V SNAP | 97% | View |
| MAL209457121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 450V SNAP | 95% | View |
| LGN2G121MELZ30 | Nichicon | CAP ALUM 120UF 20% 400V SNAP | 90% | View |
| 450HXC120MEFCSN22X45 | Rubycon | CAP ALUM 120UF 20% 450V SNAP | 71% | View |
| EEU-FR1H121L | Panasonic Electronic Components | CAP ALUM 120UF 20% 50V RADIAL | 69% | View |
| EKXJ421ELL121MM45S | United Chemi-Con | CAP ALUM 120UF 20% 420V RADIAL | 69% | View |
Submit your RFQ for ECO-S2WB121CA and get a quote within 24 hours.
