Panasonic Electronic Components

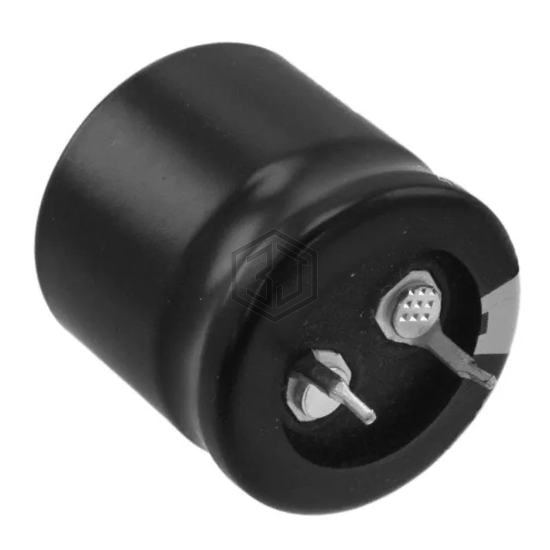

CAP ALUM 68UF 20% 500V SNAP
ECO-S2HP680CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 3,262
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 2.438Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.09 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2HP680CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305A5686M60 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 92% | View |
| 450HXW68MEFR10X55 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 89% | View |
| ESMM401VNN680MQ20U | United Chemi-Con | CAP ALUM 68UF 20% 400V SNAP | 86% | View |
| 400LXW68MEFR12.5X35 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 82% | View |
| B43252B5686M | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 450V SNAP | 76% | View |
| UCY2C680MHD3TO | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 70% | View |
Submit your RFQ for ECO-S2HP680CA and get a quote within 24 hours.
