Panasonic Electronic Components

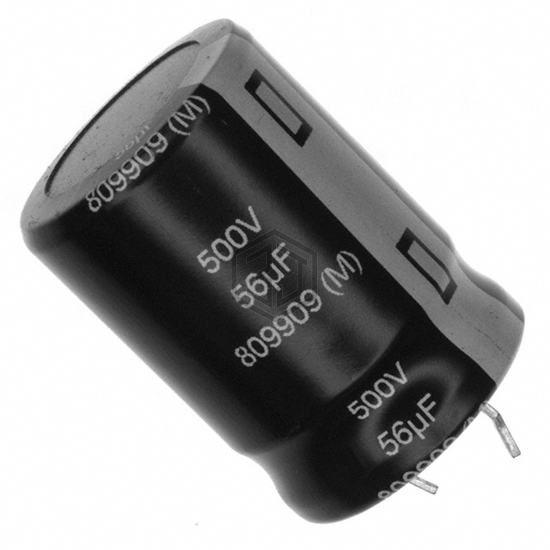

CAP ALUM 56UF 20% 500V SNAP
ECO-S2HP560BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 56UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 9,521
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 2.96Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2HP560BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450LXW56MEFR12.5X30 | Rubycon | CAP ALUM 56UF 20% 450V RADIAL | 86% | View |
| 400LXW56MEFR10X40 | Rubycon | CAP ALUM 56UF 20% 400V RADIAL | 82% | View |
| 450MXC56MEFC20X30 | Rubycon | CAP ALUM 56UF 20% 450V SNAP | 82% | View |
| EKWA421ELL560MK30S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 81% | View |
| 420BXW56MEFR14.5X30 | Rubycon | CAP ALUM 56UF 20% 420V RADIAL | 81% | View |
| EKXJ221ELL560MJ30S | United Chemi-Con | CAP ALUM 56UF 20% 220V RADIAL | 62% | View |
Submit your RFQ for ECO-S2HP560BA and get a quote within 24 hours.
