Panasonic Electronic Components

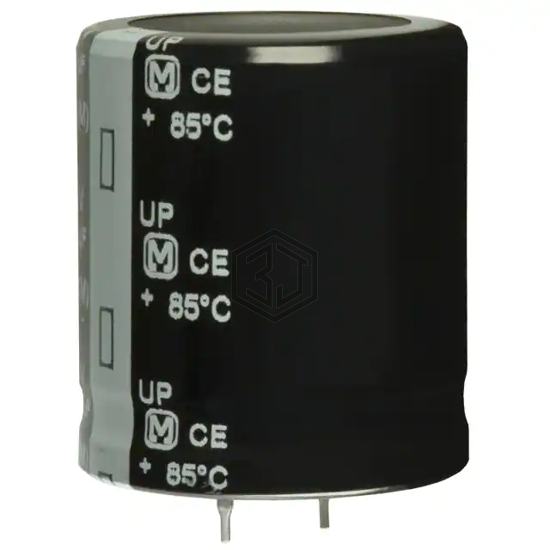

CAP ALUM 270UF 20% 500V SNAP
ECO-S2HP271EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 5,585
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 614mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.76 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.464 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2HP271EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508C5277M80 | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 450V SNAP | 86% | View |
| 861111485028 | Würth Elektronik | CAP ALUM 270UF 20% 450V SNAP | 82% | View |
| 277LBB200M2BC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 270UF 20% 200V SNAP | 78% | View |
| UCY2C271MHD | Nichicon | CAP ALUM 270UF 20% 160V RADIAL | 70% | View |
| LAKW6271MELC40 | Nichicon | CAP ALUM 270UF 20% 420V SNAP | 67% | View |
| ESMH201VNN271MP25S | United Chemi-Con | CAP ALUM 270UF 20% 200V SNAP | 65% | View |
Submit your RFQ for ECO-S2HP271EA and get a quote within 24 hours.
