Panasonic Electronic Components
CAP ALUM 220UF 20% 500V SNAP

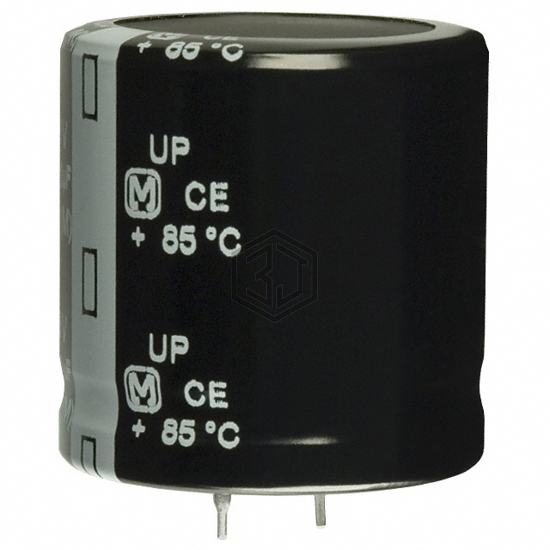

ECO-S2HP221EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 1,530
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 754mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.54 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.156 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2HP221EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43601B9227M67 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 89% | View |
| 380LX221M315J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 315V SNAP | 82% | View |
| MAL209456221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 400V SNAP | 81% | View |
| B43504D9227M002 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 400V SNAP | 80% | View |
| EKMM421VNN221MR35W | United Chemi-Con | CAP ALUM 220UF 20% 420V SNAP | 79% | View |
| EKMH401VNN221MA30W | United Chemi-Con | CAP ALUM 220UF 20% 400V SNAP | 77% | View |
Submit your RFQ for ECO-S2HP221EA and get a quote within 24 hours.
