Panasonic Electronic Components
CAP ALUM 180UF 20% 500V SNAP

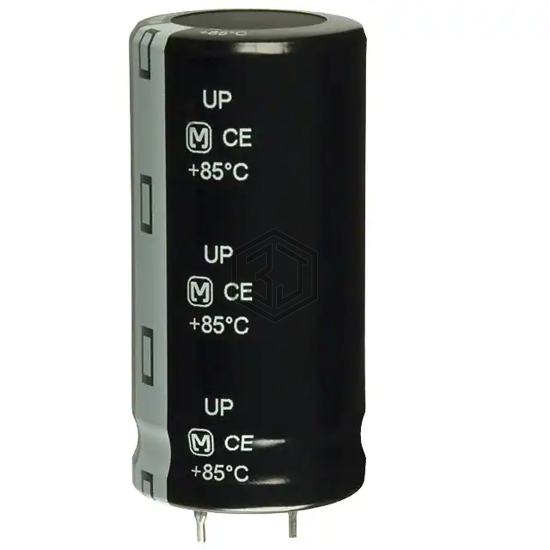

ECO-S2HP181CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 1,020
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 921mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.932 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2HP181CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225979181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 500V SNAP | 96% | View |
| B43601C5187M82 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 94% | View |
| B43644A5187M067 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 88% | View |
| UPH2W181MHD | Nichicon | CAP ALUM 180UF 20% 450V RADIAL | 87% | View |
| MAL209434181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 420V SNAP | 83% | View |
| LASW6181MELC25 | Nichicon | CAP ALUM 180UF 20% 420V SNAP | 70% | View |
