Panasonic Electronic Components
CAP ALUM 68UF 20% 400V SNAP

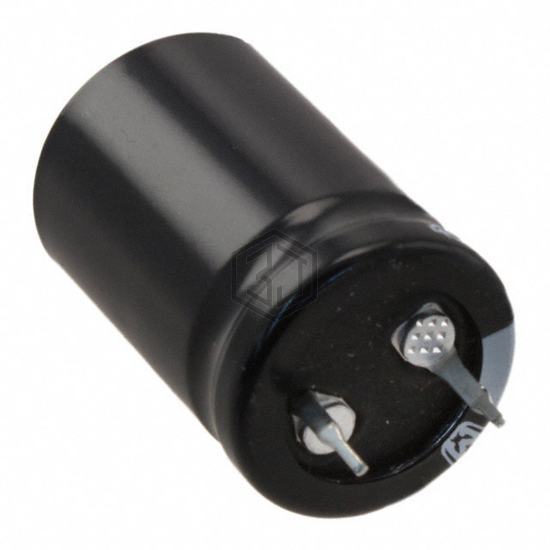

ECO-S2GP680AA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 68UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 6,522
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 2.438Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 760 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GP680AA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400HXG68MEFC20X25 | Rubycon | CAP ALUM 68UF 20% 400V SNAP | 93% | View |
| B43548A6686M060 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 500V SNAP | 90% | View |
| MAL215977689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 20% 450V SNAP | 85% | View |
| EEU-FS2A680LB | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 62% | View |
| 200BXC68MEFC16X20 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL | 59% | View |
| URS2C680MHD | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 57% | View |
Submit your RFQ for ECO-S2GP680AA and get a quote within 24 hours.
