Panasonic Electronic Components
CAP ALUM 470UF 20% 400V SNAP

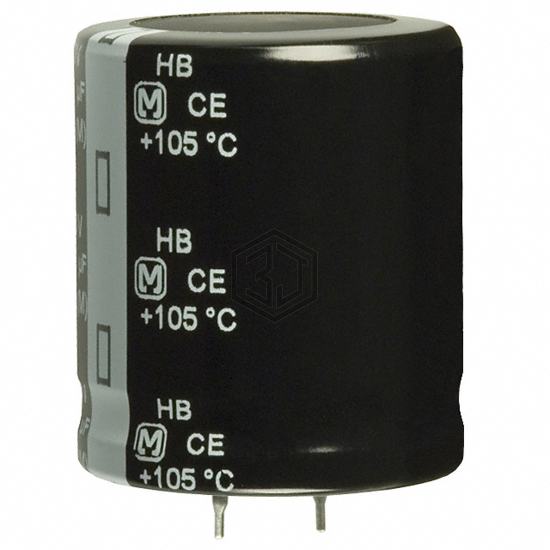

ECO-S2GB471EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,175
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 353mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.75 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.995 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GB471EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450VXG470MEFCSN35X45 | Rubycon | CAP ALUM 470UF 20% 450V SNAP | 84% | View |
| 861141084008 | Würth Elektronik | CAP ALUM 470UF 20% 200V SNAP | 74% | View |
| MAL215973471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 250V SNAP | 73% | View |
| B43254C2477M | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 200V SNAP | 72% | View |
| EG1J471MNN1225EF7 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 68% | View |
| 63TXW470MEFC8X60 | Rubycon | CAP ALUM 470UF 20% 63V RADIAL | 68% | View |
