Panasonic Electronic Components
CAP ALUM 390UF 20% 400V SNAP

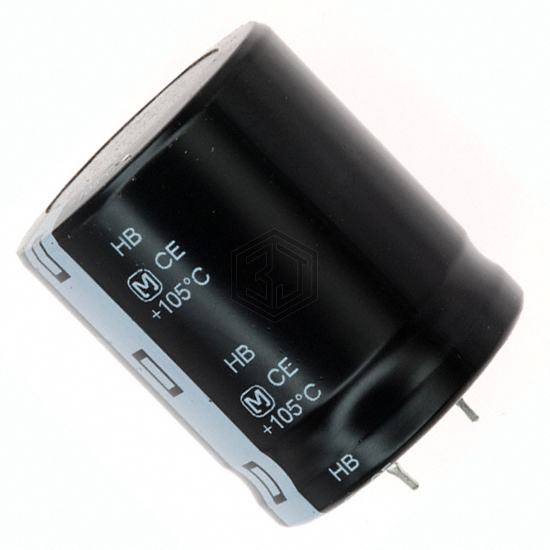

ECO-S2GB391EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,690
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 425mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.55 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.767 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GB391EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43642B9397M007 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 400V SNAP | 97% | View |
| EKMQ451VSN391MA35S | United Chemi-Con | CAP ALUM 390UF 20% 450V SNAP | 92% | View |
| B43643A5397M050 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 450V SNAP | 88% | View |
| 250MXG390MEFCSN25X25 | Rubycon | CAP ALUM 390UF 20% 250V SNAP | 79% | View |
| LGU2Z391MELA | Nichicon | CAP ALUM 390UF 20% 180V SNAP | 72% | View |
| 672D397H040DS5R | Vishay Sprague | CAP ALUM 390UF 40V RADIAL | 56% | View |
Submit your RFQ for ECO-S2GB391EA and get a quote within 24 hours.
