Panasonic Electronic Components
CAP ALUM 180UF 20% 400V SNAP

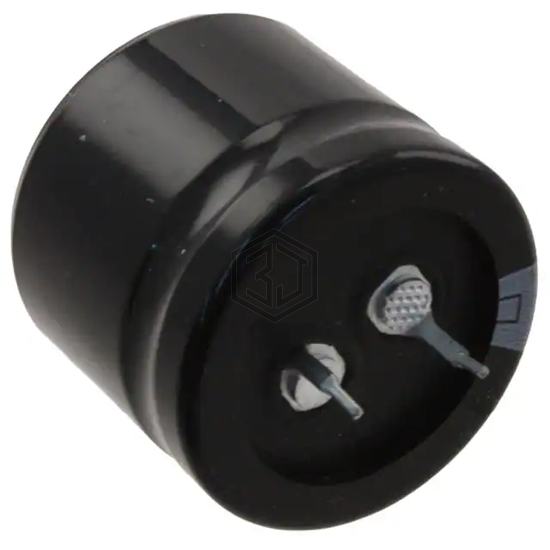

ECO-S2GB181DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 9,327
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 921mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.083 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GB181DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXG401ELL181MM40S | United Chemi-Con | CAP ALUM 180UF 20% 400V RADIAL | 100% | View |
| B43508A9187M87 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 400V SNAP | 97% | View |
| EKMW401VSN181MP30S | United Chemi-Con | CAP ALUM 180UF 20% 400V SNAP | 90% | View |
| PW2W181MCM1845E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 90% | View |
| B43547A5187M067 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 85% | View |
| E91F501VSN181MR50U | United Chemi-Con | CAP ALUM 180UF 20% 500V SNAP | 69% | View |
Submit your RFQ for ECO-S2GB181DA and get a quote within 24 hours.
