Panasonic Electronic Components

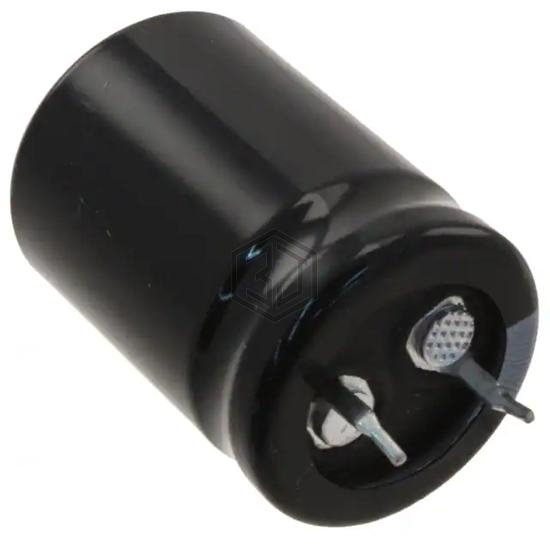

CAP ALUM 180UF 20% 400V SNAP
ECO-S2GB181BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 3,264
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 921mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.083 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GB181BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LAR2G181MELA30 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 95% | View |
| B43504A5187M002 | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 450V SNAP | 93% | View |
| 450MXC180MEFCSN25X40 | Rubycon | CAP ALUM 180UF 20% 450V SNAP | 92% | View |
| 400QXW180MEFR18X40 | Rubycon | CAP ALUM 180UF 20% 400V RADIAL | 88% | View |
| 381LR181M400K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 180UF 20% 400V SNAP | 87% | View |
| 450BXW180MEFR18X50 | Rubycon | CAP ALUM 180UF 20% 450V RADIAL | 73% | View |
Submit your RFQ for ECO-S2GB181BA and get a quote within 24 hours.
