Panasonic Electronic Components
CAP ALUM 150UF 20% 400V SNAP

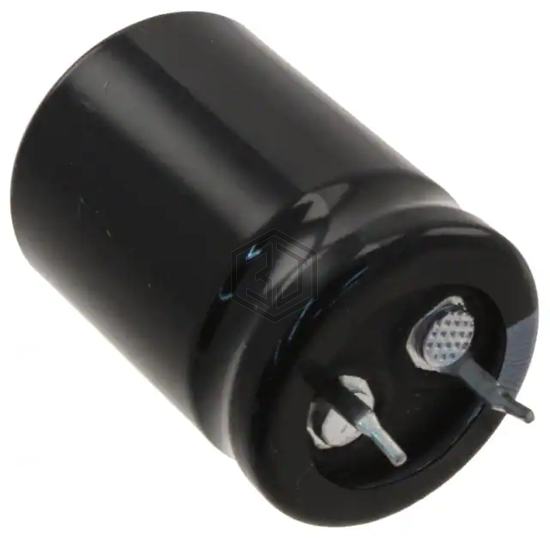

ECO-S2GB151BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 150UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 8,506
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 1.105Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 820 mA @ 120 Hz |
| Ripple Current @ High Frequency | 934.8 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GB151BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43641A9157M057 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 400V SNAP | 98% | View |
| LGU2G151MELY | Nichicon | CAP ALUM 150UF 20% 400V SNAP | 94% | View |
| MAL215987151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 450V SNAP | 92% | View |
| MAL219316151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 400V SNAP | 79% | View |
| EEU-FC2A151 | Panasonic Electronic Components | CAP ALUM 150UF 20% 100V RADIAL | 65% | View |
| EKXJ221ELL151ML25S | United Chemi-Con | CAP ALUM 150UF 20% 220V RADIAL | 64% | View |
Submit your RFQ for ECO-S2GB151BA and get a quote within 24 hours.
