Panasonic Electronic Components

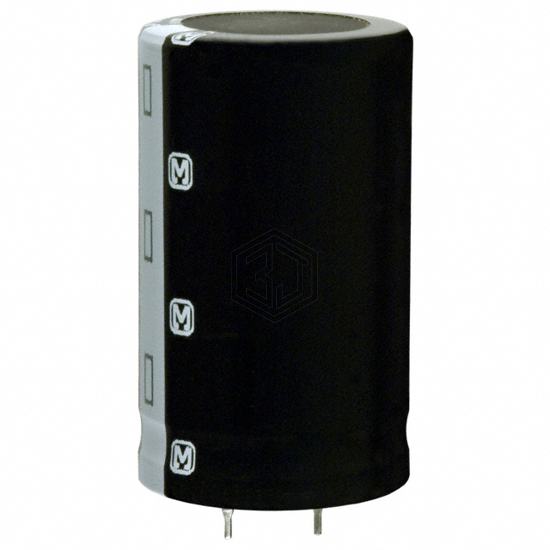

CAP ALUM 330UF 20% 400V SNAP
ECO-S2GA331DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 330UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 8,100
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 402mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.89 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GA331DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLP331M400E4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 400V SNAP | 92% | View |
| EKMQ351VSN331MQ40S | United Chemi-Con | CAP ALUM 330UF 20% 350V SNAP | 91% | View |
| LGU2E331MELZ | Nichicon | CAP ALUM 330UF 20% 250V SNAP | 84% | View |
| MAL205923331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 250V SNAP | 79% | View |
| B43505A2337M67 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 79% | View |
| B43508F2337M87 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 250V SNAP | 75% | View |
Submit your RFQ for ECO-S2GA331DA and get a quote within 24 hours.
