Panasonic Electronic Components
CAP ALUM 270UF 20% 400V SNAP

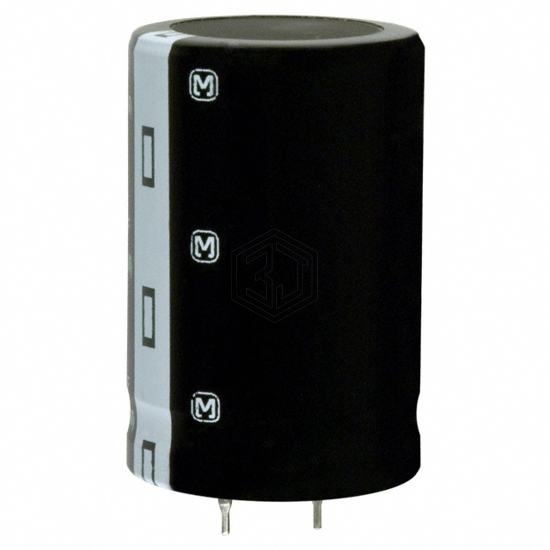

ECO-S2GA271DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 7,468
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 491mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.68 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GA271DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ421VSN271MA25S | United Chemi-Con | CAP ALUM 270UF 20% 420V SNAP | 96% | View |
| 400MXH270MEFCSN30X25 | Rubycon | CAP ALUM 270UF 20% 400V SNAP | 95% | View |
| EKMS451VSN271MQ50S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 89% | View |
| MAL215943271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 250V SNAP | 77% | View |
| 200VXG270MEFC22X25 | Rubycon | CAP ALUM 270UF 20% 200V SNAP | 73% | View |
| 100YXG270MEFCGC16X25 | Rubycon | CAP ALUM 270UF 20% 100V RADIAL | 56% | View |
Submit your RFQ for ECO-S2GA271DA and get a quote within 24 hours.
