Panasonic Electronic Components
CAP ALUM 220UF 20% 400V SNAP

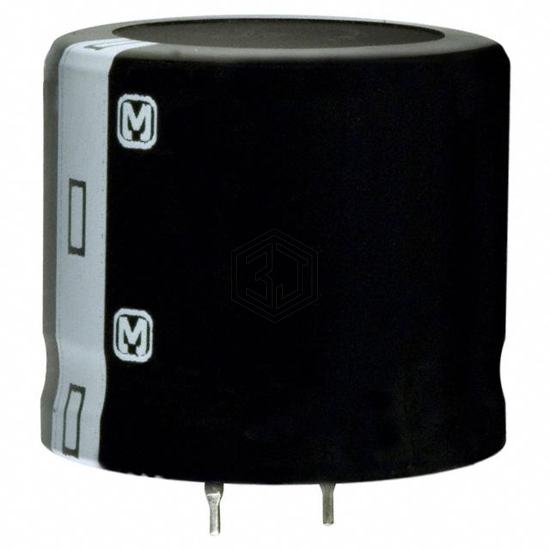

ECO-S2GA221EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 220UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 1,313
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 603mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.54 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GA221EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LSM221M2P---3035S | Surge | CAP ALUM 420V POLAR | 96% | View |
| B43508C5227M2 | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 450V SNAP | 95% | View |
| EKMM451VEN221MR35U | United Chemi-Con | CAP ALUM 220UF 20% 450V SNAP | 95% | View |
| EKMM351VSN221MQ35S | United Chemi-Con | CAP ALUM 220UF 20% 350V SNAP | 94% | View |
| MAL214252221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 200V RADIAL | 61% | View |
| MAL216036221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for ECO-S2GA221EA and get a quote within 24 hours.
