Panasonic Electronic Components

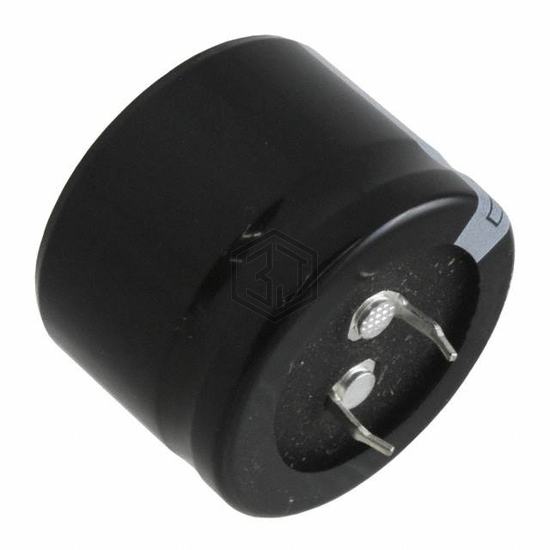

CAP ALUM 180UF 20% 400V SNAP
ECO-S2GA181EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 180UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 4,861
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 737mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.33 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2GA181EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2G181MELZ35 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 99% | View |
| EKMQ401VSN181MQ30U | United Chemi-Con | CAP ALUM 180UF 20% 400V SNAP | 99% | View |
| 420MXH180MEFC22X30 | Rubycon | CAP ALUM 180UF 20% 420V SNAP | 97% | View |
| LGX2G181MELZ35 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 96% | View |
| LGX2G181MELB25 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 96% | View |
| LAS2G181MELZ40 | Nichicon | CAP ALUM 180UF 20% 400V SNAP | 95% | View |
Submit your RFQ for ECO-S2GA181EA and get a quote within 24 hours.
