Panasonic Electronic Components
CAP ALUM 680UF 20% 250V SNAP

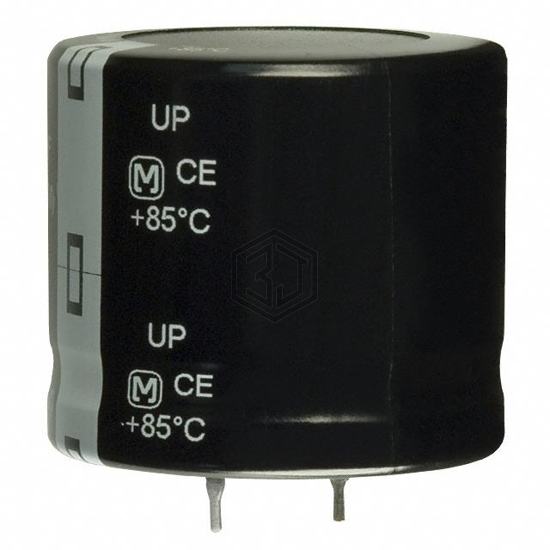

ECO-S2EP681EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 680UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 6,047
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 268mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EP681EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305F2687M80 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 99% | View |
| MAL225963681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 250V SNAP | 97% | View |
| B43601G2687M62 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 250V SNAP | 97% | View |
| LGW2D681MELZ40 | Nichicon | CAP ALUM 680UF 20% 200V SNAP | 91% | View |
| LGG2E681MELA40 | Nichicon | CAP ALUM 680UF 20% 250V SNAP | 83% | View |
| B43252C2687M | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 200V SNAP | 82% | View |
Submit your RFQ for ECO-S2EP681EA and get a quote within 24 hours.
