Panasonic Electronic Components

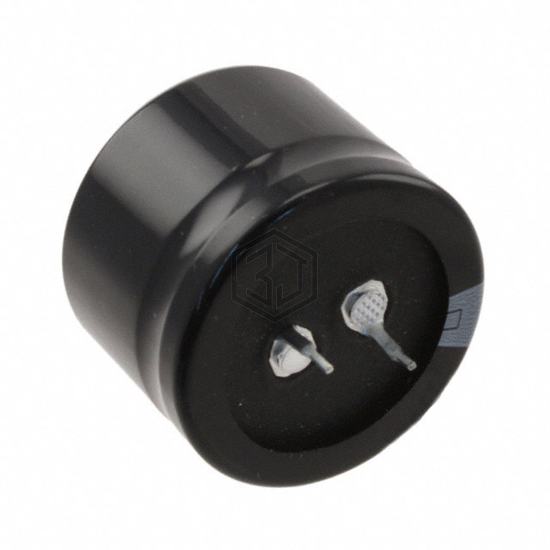

CAP ALUM 560UF 20% 250V SNAP
ECO-S2EP561EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,185
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 326mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.15 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EP561EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX561M250K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 250V 20% SNAP | 100% | View |
| 380LX561M250A012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V SNAP | 99% | View |
| B43540G2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 96% | View |
| B43501B3567M82 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 385V SNAP | 76% | View |
| B43501B9567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 73% | View |
| B43520A6567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 500V RADIAL | 70% | View |
Submit your RFQ for ECO-S2EP561EA and get a quote within 24 hours.
