Panasonic Electronic Components
CAP ALUM 560UF 20% 250V SNAP

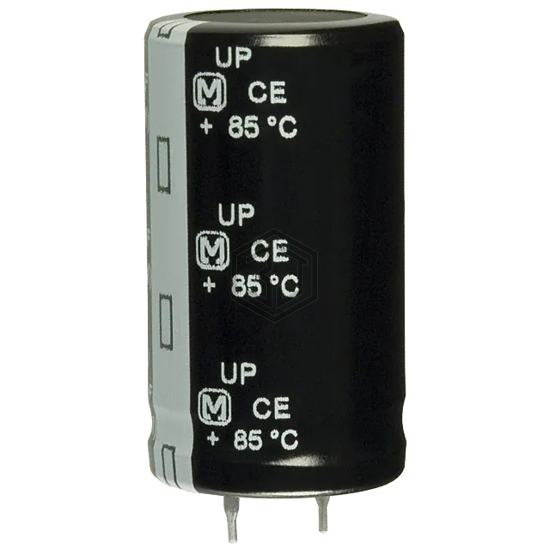

ECO-S2EP561CX is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,768
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 326mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.15 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EP561CX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGW2D561MELA30 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 91% | View |
| B43540A2567M2 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 91% | View |
| LLG2C561MELZ25 | Nichicon | CAP ALUM 560UF 20% 160V SNAP | 85% | View |
| LGN2D561MELZ35 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 79% | View |
| B43544B9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 74% | View |
| MAL225727561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 450V SNAP | 74% | View |
Submit your RFQ for ECO-S2EP561CX and get a quote within 24 hours.
