Panasonic Electronic Components
CAP ALUM 1200UF 20% 250V SNAP

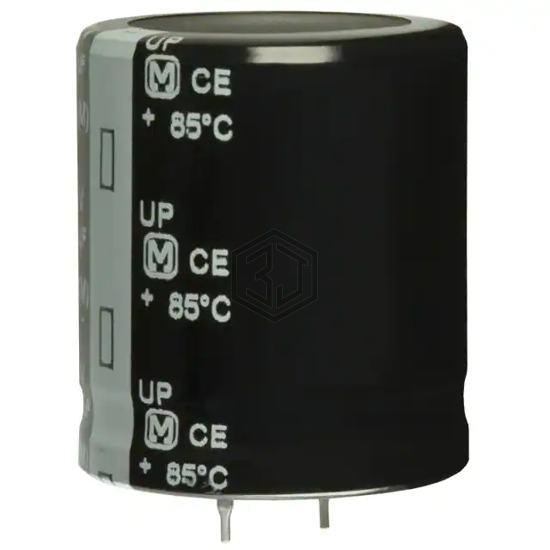

ECO-S2EP122EX is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1200UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,439
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 166mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.53 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.942 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EP122EX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ122M200H052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 200V SNAP | 93% | View |
| 250USC1200MEFCSN30X45 | Rubycon | CAP ALUM 1200UF 20% 250V SNAP | 92% | View |
| B43508E2128M2 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 89% | View |
| B43305A2128M82 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 87% | View |
| 180MXG1200MEFCSN22X60 | Rubycon | CAP ALUM 1200UF 20% 180V SNAP | 85% | View |
| MAL225782122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 200V SNAP | 84% | View |
Submit your RFQ for ECO-S2EP122EX and get a quote within 24 hours.
