Panasonic Electronic Components
CAP ALUM 560UF 20% 250V SNAP

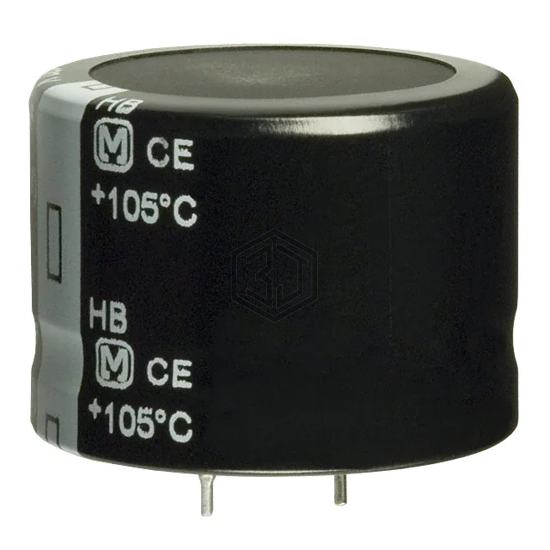

ECO-S2EB561EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 9,902
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 296mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.71 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EB561EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 90% | View |
| 200MXC560MEFC30X25 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 84% | View |
| B43642B9567M067 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 67% | View |
| B43508A5567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 450V SNAP | 65% | View |
| ALC80D561CD250 | KEMET | CAP ALUM 560UF 20% 250V SNAP | 64% | View |
| EKMZ451VSN561MR45S | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 63% | View |
Submit your RFQ for ECO-S2EB561EA and get a quote within 24 hours.
