Panasonic Electronic Components
CAP ALUM 560UF 20% 250V SNAP

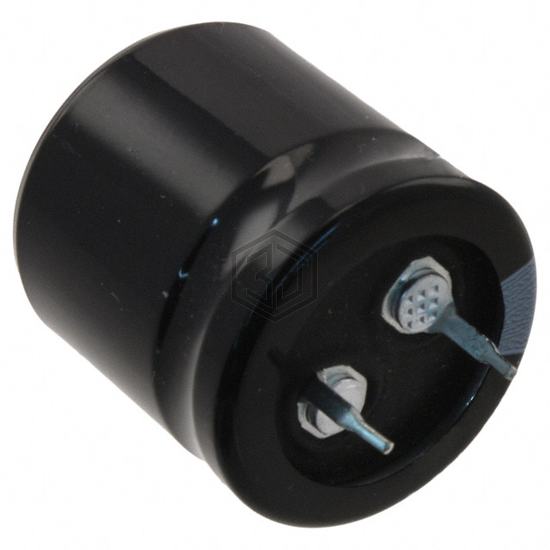

ECO-S2EB561CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 8,842
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 296mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.71 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EB561CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508F2567M2 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 98% | View |
| B43508E2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 97% | View |
| B43504B2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 96% | View |
| 250MXC560MEFC30X30 | Rubycon | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| LGU2Z561MELB | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 78% | View |
| UBY1J561MHL1TO | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 65% | View |
Submit your RFQ for ECO-S2EB561CA and get a quote within 24 hours.
