Panasonic Electronic Components

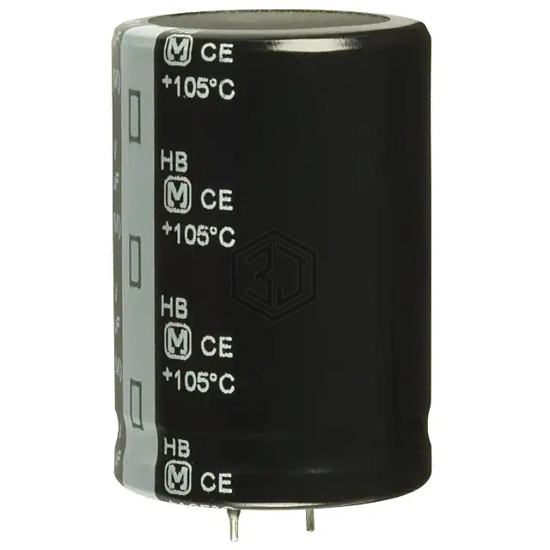

CAP ALUM 1500UF 20% 250V SNAP
ECO-S2EB152EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 250V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can - Snap-In.
In Stock: 6,096
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 144mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.85 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2EB152EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 180MXG1500MEFCSN35X30 | Rubycon | CAP ALUM 1500UF 20% 180V SNAP | 83% | View |
| UHD1E152MHD | Nichicon | CAP ALUM 1500UF 20% 25V RADIAL | 75% | View |
| 158KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 50V RADIAL | 70% | View |
| EST158M035AL6AA | KEMET | CAP ALUM RAD 105C | 70% | View |
| B41858C6158M9 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 50V RADIAL | 66% | View |
| 860020680028 | Würth Elektronik | CAP ALUM 1500UF 20% 50V RADIAL | 50% | View |
Submit your RFQ for ECO-S2EB152EA and get a quote within 24 hours.
