Panasonic Electronic Components
CAP ALUM 820UF 20% 200V SNAP

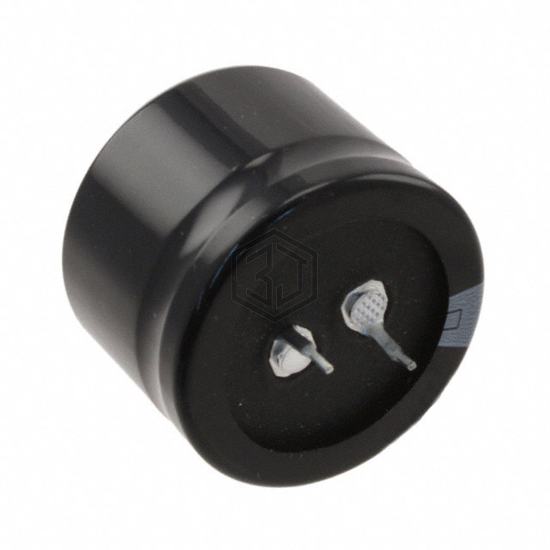

ECO-S2DP821EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 820UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,684
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 222mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.93 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.102 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DP821EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ821M200J042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 200V SNAP | 87% | View |
| LPX821M250H5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 250V SNAP | 87% | View |
| 827LBB250M2DF | Cornell Dubilier / Illinois Capacitor | CAP ALUM 820UF 20% 250V SNAP | 81% | View |
| B43508E2827M7 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 80% | View |
| LAR2E821MELA45 | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 77% | View |
| B43510B6827M87 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 500V SNAP | 69% | View |
Submit your RFQ for ECO-S2DP821EA and get a quote within 24 hours.
