Panasonic Electronic Components
CAP ALUM 560UF 20% 200V SNAP

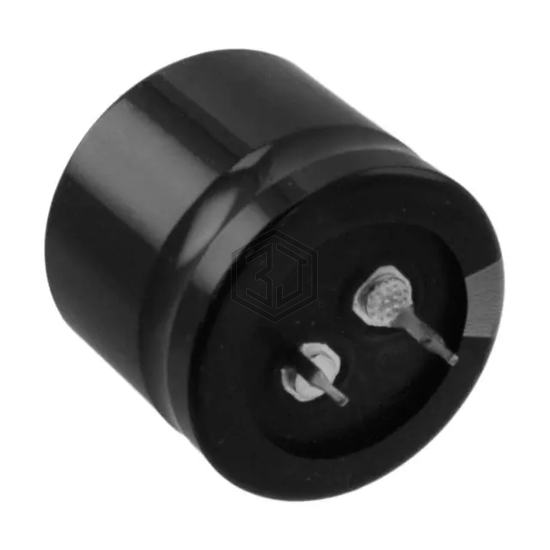

ECO-S2DP561DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,580
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 326mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.402 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DP561DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43601B2567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 94% | View |
| MAL225742561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 200V SNAP | 92% | View |
| 200MXC560MEFC30X25 | Rubycon | CAP ALUM 560UF 20% 200V SNAP | 82% | View |
| ALC80D561CD250 | KEMET | CAP ALUM 560UF 20% 250V SNAP | 81% | View |
| MAL219357561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 450V SNAP | 71% | View |
| EKMZ451VSN561MR45S | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 70% | View |
Submit your RFQ for ECO-S2DP561DA and get a quote within 24 hours.
