Panasonic Electronic Components
CAP ALUM 390UF 20% 200V SNAP

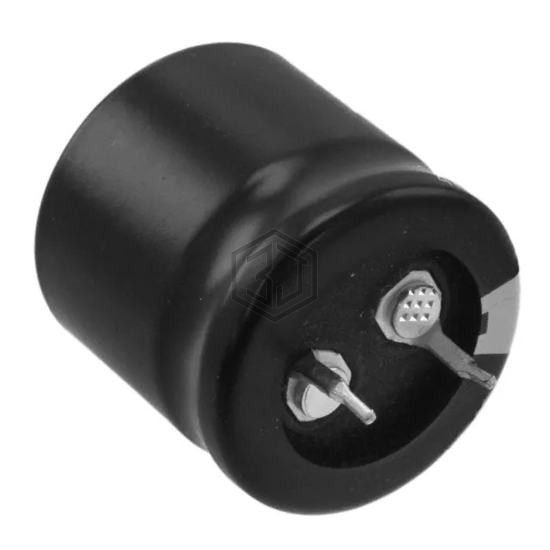

ECO-S2DP391CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 5,628
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 468mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.68 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.352 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DP391CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225752391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 200V SNAP | 98% | View |
| 397LBB200M2BD | Cornell Dubilier / Illinois Capacitor | CAP ALUM 390UF 20% 200V SNAP | 96% | View |
| B43252F2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 250V SNAP | 88% | View |
| B43254A2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 85% | View |
| LAR2E391MELA30 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 83% | View |
| B43254B1397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 160V SNAP | 80% | View |
Submit your RFQ for ECO-S2DP391CA and get a quote within 24 hours.
