Panasonic Electronic Components
CAP ALUM 1500UF 20% 200V SNAP

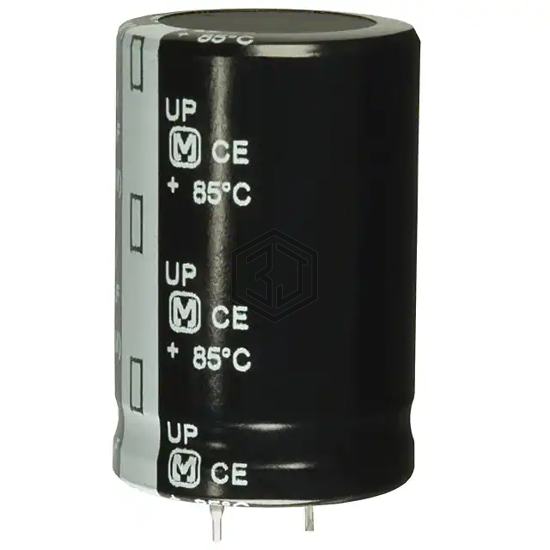

ECO-S2DP152DX is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 4,186
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 144mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.87 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.418 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DP152DX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305A2158M62 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 98% | View |
| LLG2C152MELA40 | Nichicon | CAP ALUM 1500UF 20% 160V SNAP | 89% | View |
| B43504A2158M62 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 89% | View |
| B43511C4158M007 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 350V SNAP | 62% | View |
| 860080580025 | Würth Elektronik | CAP ALUM 1500UF 20% 35V RADIAL | 58% | View |
| B41895A6158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for ECO-S2DP152DX and get a quote within 24 hours.
