Panasonic Electronic Components
CAP ALUM 560UF 20% 200V SNAP

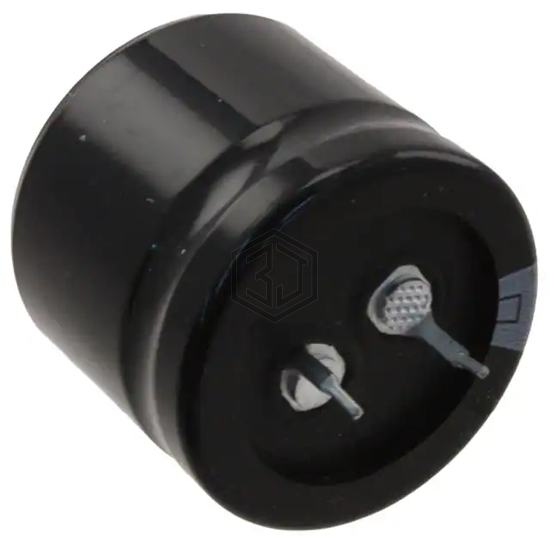

ECO-S2DB561DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 2,371
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 355mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.71 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB561DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LDQ2D561MERYGA | Nichicon | CAP ALUM 560UF 20% 200V RADIAL | 91% | View |
| LGG2E561MELZ40 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 87% | View |
| B43504A2567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| B43504A2567M62 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 85% | View |
| B43254G2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 81% | View |
| EKYA500ELL561MK20S | United Chemi-Con | CAP ALUM 560UF 20% 50V RADIAL | 64% | View |
Submit your RFQ for ECO-S2DB561DA and get a quote within 24 hours.
