Panasonic Electronic Components
CAP ALUM 470UF 20% 200V SNAP

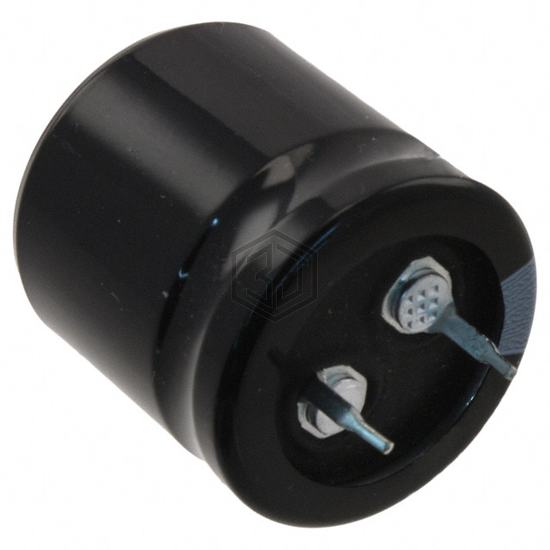

ECO-S2DB471CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 470UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,124
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 423mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.596 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB471CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43505E2477M60 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 200V SNAP | 94% | View |
| LGU2P471MELA | Nichicon | CAP ALUM 470UF 20% 220V SNAP | 89% | View |
| UPM1J471MHD1CA | Nichicon | CAP ALUM 63V POLAR | 76% | View |
| UHV1V471MPD1AA | Nichicon | CAP ALUM 35V POLAR | 65% | View |
| UBX1K471MHL | Nichicon | CAP ALUM 470UF 20% 80V RADIAL | 63% | View |
| 477CKE063M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 63V RADIAL | 62% | View |
