Panasonic Electronic Components
CAP ALUM 390UF 20% 200V SNAP

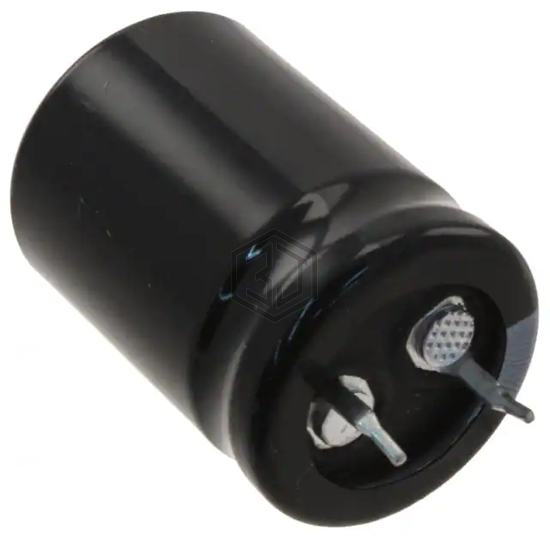

ECO-S2DB391BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,788
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 510mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.482 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB391BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGR2E391MELA35 | Nichicon | CAP ALUM 390UF 20% 250V SNAP | 87% | View |
| EEU-FC1H391SB | Panasonic Electronic Components | CAP ALUM 390UF 20% 50V RADIAL | 75% | View |
| EY2A391MNN1240 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 65% | View |
| B43504A397M62 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 420V SNAP | 63% | View |
| MAL224668391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 63V RADIAL | 57% | View |
| MAL225916391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 400V SNAP | 54% | View |
Submit your RFQ for ECO-S2DB391BA and get a quote within 24 hours.
