Panasonic Electronic Components

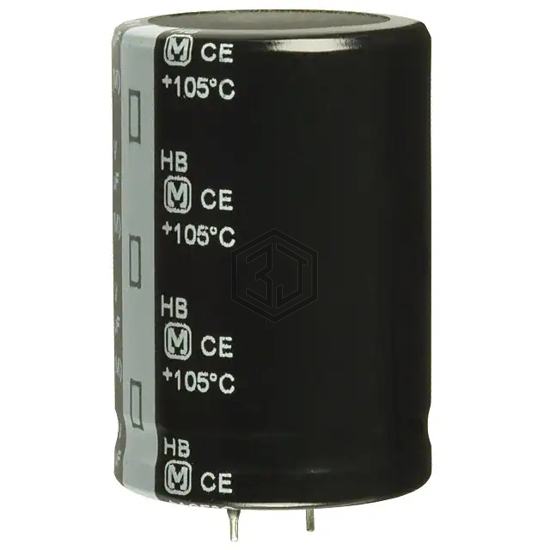

CAP ALUM 2200UF 20% 200V SNAP
ECO-S2DB222EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,696
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 105mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.9 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.306 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB222EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100MXC2200MEFC25X45 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 73% | View |
| MAL205859222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 100V SNAP | 70% | View |
| EEU-FK1V222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RAD TH | 68% | View |
| MAL224630222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 64% | View |
| 80MXG2200MEFCSN22X35 | Rubycon | CAP ALUM 2200UF 20% 80V SNAP | 62% | View |
| 601D228F050GS1 | Vishay Sprague | CAP ALUM 2200UF 50V AXIAL | 62% | View |
Submit your RFQ for ECO-S2DB222EA and get a quote within 24 hours.
