Panasonic Electronic Components
CAP ALUM 1500UF 20% 200V SNAP

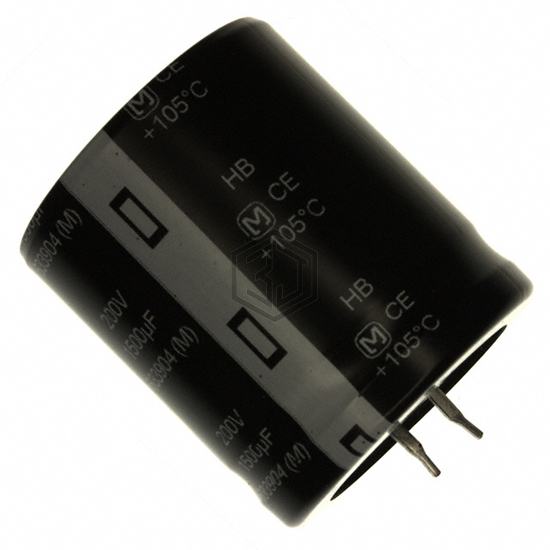

ECO-S2DB152EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,601
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 155mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.85 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB152EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGU2P152MELC | Nichicon | CAP ALUM 1500UF 20% 220V SNAP | 82% | View |
| B43255A2158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 80% | View |
| B41792B7158Q001 | EPCOS - TDK Electronics | CAP ALUM 1500UF 40V T/H | 59% | View |
| PEG227KKL4150ME4 | KEMET | ALUMINUM ELECTROLYTIC, AXIAL, UL | 57% | View |
| EKMG500ELL152ML25S | United Chemi-Con | CAP ALUM 1500UF 20% 50V RADIAL | 56% | View |
| MAL215030152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 53% | View |
Submit your RFQ for ECO-S2DB152EA and get a quote within 24 hours.
