Panasonic Electronic Components

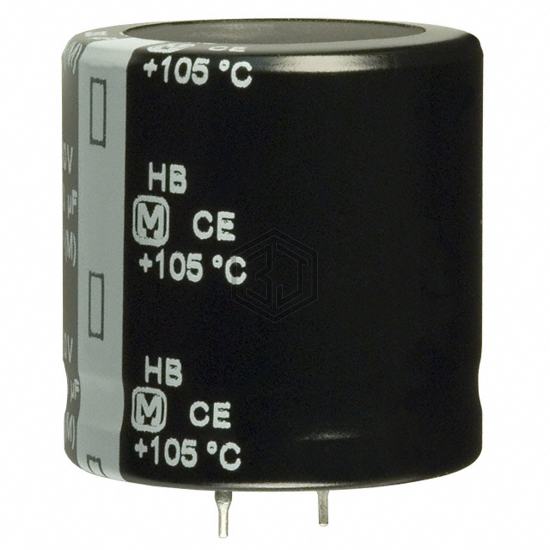

CAP ALUM 1200UF 20% 200V SNAP
ECO-S2DB122EH is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,341
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB122EH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508B2128M82 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 100% | View |
| B43504F2128M87 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 200V SNAP | 100% | View |
| ELXY350ELL122ML25S | United Chemi-Con | CAP ALUM 1200UF 20% 35V RADIAL | 56% | View |
| MAL215858122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 63V SNAP | 56% | View |
| EKYB630ELL122MM25S | United Chemi-Con | CAP ALUM 1200UF 20% 63V RADIAL | 56% | View |
| EGXF350ELL122MJ30S | United Chemi-Con | CAP ALUM 1200UF 20% 35V RAD TH | 56% | View |
Submit your RFQ for ECO-S2DB122EH and get a quote within 24 hours.
