Panasonic Electronic Components
CAP ALUM 1000UF 20% 200V SNAP

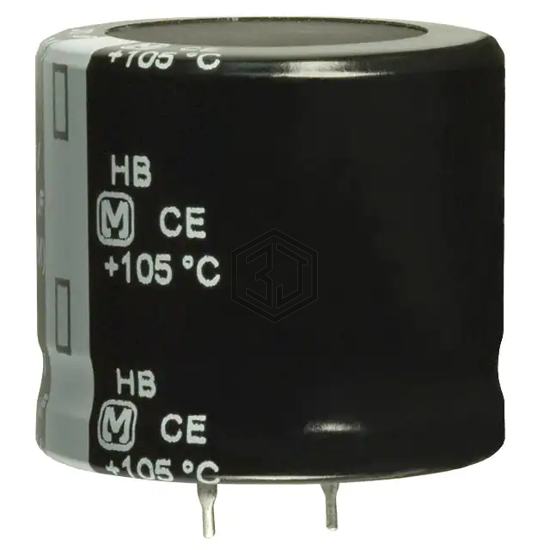

ECO-S2DB102EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,009
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 216mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.508 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DB102EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43504E2108M60 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 97% | View |
| B43254C1108M | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 160V SNAP | 85% | View |
| MAL225923102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 250V SNAP | 72% | View |
| EKY-500ELL102MK40S | United Chemi-Con | CAP ALUM 1000UF 20% 50V RADIAL | 70% | View |
| 35ZLG1000MEFCG412.5X25 | Rubycon | CAP ALUM 1000UF 20% 35V RADIAL | 70% | View |
| B41858C3108M8 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 10V RADIAL | 56% | View |
Submit your RFQ for ECO-S2DB102EA and get a quote within 24 hours.
