Panasonic Electronic Components

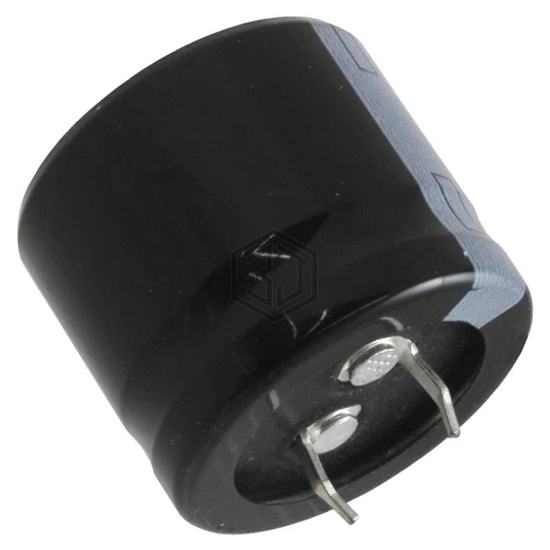

CAP ALUM 390UF 20% 200V SNAP
ECO-S2DA391DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 390UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,994
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 425mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.82 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DA391DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR1J391B | Panasonic Electronic Components | CAP ALUM 390UF 20% 63V RADIAL | 73% | View |
| UCY2C391MHD6 | Nichicon | CAP ALUM 390UF 20% 160V RADIAL | 72% | View |
| 50ZLJ390MT810X25 | Rubycon | CAP ALUM 390UF 20% 50V RADIAL | 72% | View |
| B41858C9397M000 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 100V RADIAL | 70% | View |
| B43504A0397M002 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 420V SNAP | 63% | View |
| ELXZ500ETD391MK20S | United Chemi-Con | CAP ALUM 390UF 20% 50V RADIAL | 61% | View |
Submit your RFQ for ECO-S2DA391DA and get a quote within 24 hours.
