Panasonic Electronic Components
CAP ALUM 270UF 20% 200V SNAP

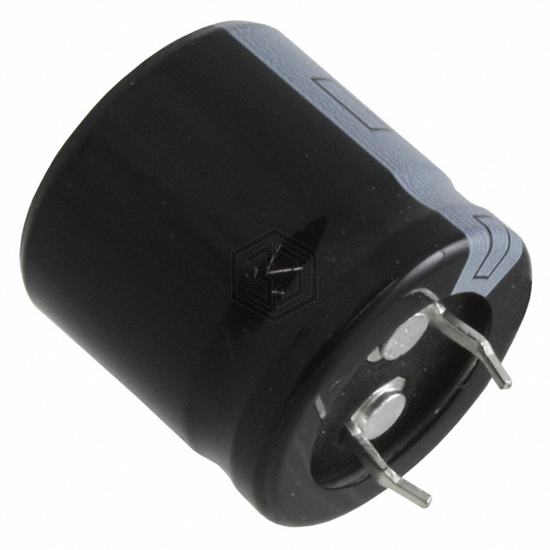

ECO-S2DA271CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 270UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,355
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 614mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.54 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DA271CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43252B2277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 200V SNAP | 98% | View |
| LGJ2D271MELB15 | Nichicon | CAP ALUM 270UF 20% 200V SNAP | 97% | View |
| B43254G2277M | EPCOS - TDK Electronics | CAP ALUM 270UF 20% 250V SNAP | 91% | View |
| UCS2D271MNY9 | Nichicon | CAP ALUM 270UF 20% 200V RADIAL | 85% | View |
| EKXJ251ELL271MMP1S | United Chemi-Con | CAP ALUM 270UF 20% 250V RADIAL | 74% | View |
| ELHS451VSN271MR30S | United Chemi-Con | CAP ALUM 270UF 20% 450V SNAP | 71% | View |
Submit your RFQ for ECO-S2DA271CA and get a quote within 24 hours.
