Panasonic Electronic Components

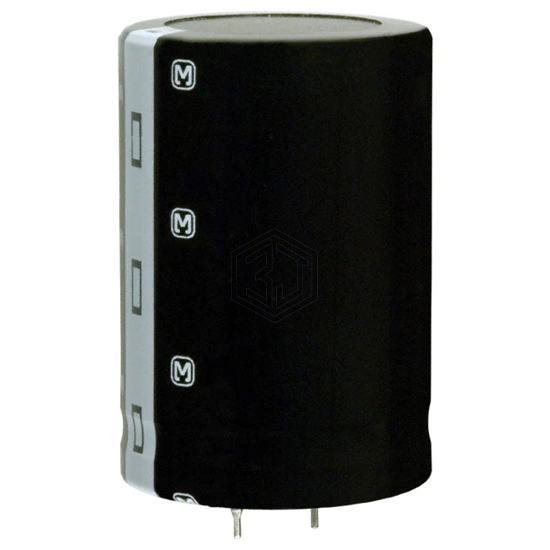

CAP ALUM 1500UF 20% 200V SNAP
ECO-S2DA152EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 3,915
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 144mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2DA152EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGG2D152MELA50 | Nichicon | CAP ALUM 1500UF 20% 200V SNAP | 97% | View |
| 381LX152M160K452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 160V SNAP | 93% | View |
| B43504G2158M60 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 90% | View |
| B43252A2158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 200V SNAP | 87% | View |
| EEU-FS1V152B | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 76% | View |
| EKMH101VSN152MP45U | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 63% | View |
Submit your RFQ for ECO-S2DA152EA and get a quote within 24 hours.
