Panasonic Electronic Components
CAP ALUM 6800UF 20% 100V SNAP

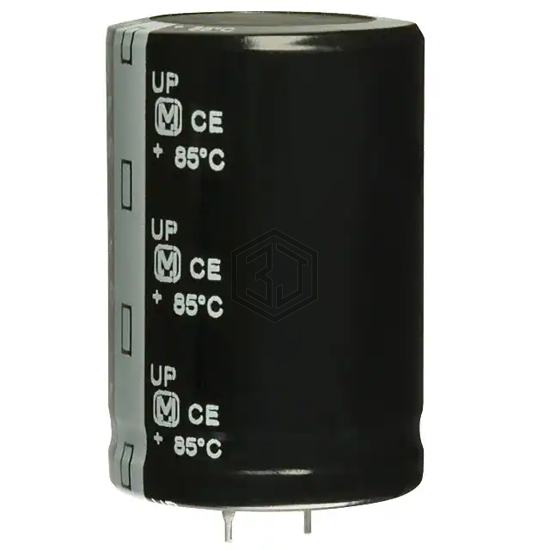

ECO-S2AP682EA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 6800UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 3,814
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 49mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.59 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP682EA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH101VSD682MA50U | United Chemi-Con | CAP ALUM 6800UF 20% 100V SNAP | 99% | View |
| B41252A0688M007 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 80V SNAP | 81% | View |
| 63MXC6800MEFCSN30X50 | Rubycon | CAP ALUM 6800UF 20% 63V SNAP | 70% | View |
| 80D682P050KE2DE3 | Vishay Sprague | CAP ALUM 6800UF 50V SNAP | 68% | View |
| 63MXC6800MEFC35X35 | Rubycon | CAP ALUM 6800UF 20% 63V SNAP | 58% | View |
| 688LBB050M2BH | Cornell Dubilier / Illinois Capacitor | CAP ALUM 6800UF 20% 50V SNAP | 55% | View |
Submit your RFQ for ECO-S2AP682EA and get a quote within 24 hours.
