Panasonic Electronic Components
CAP ALUM 4700UF 20% 100V SNAP

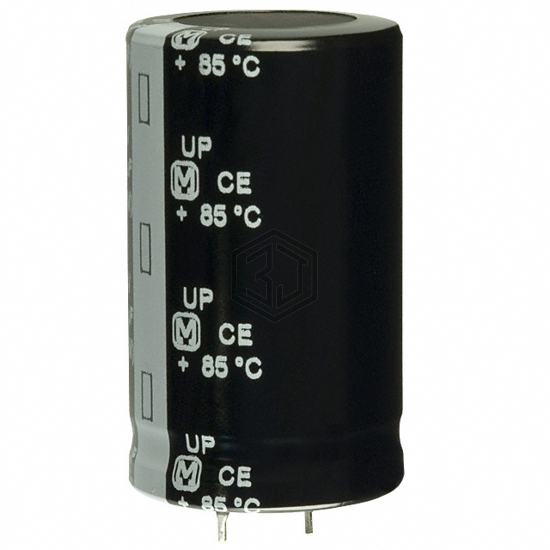

ECO-S2AP472DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 3,470
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 71mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.13 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP472DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80MXC4700MEFCSN35X35 | Rubycon | CAP ALUM 4700UF 20% 80V SNAP | 73% | View |
| EKZN350ELL472MM40S | United Chemi-Con | CAP ALUM 4700UF 20% 35V RADIAL | 70% | View |
| ESMH630VNN472MA25N | United Chemi-Con | CAP ALUM 4700UF 20% 63V SNAP | 67% | View |
| LKS1J472MESZ | Nichicon | CAP ALUM 4700UF 20% 63V SNAP | 64% | View |
| MAL215856472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V SNAP | 52% | View |
| MAL214696475E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 51% | View |
Submit your RFQ for ECO-S2AP472DA and get a quote within 24 hours.
