Panasonic Electronic Components

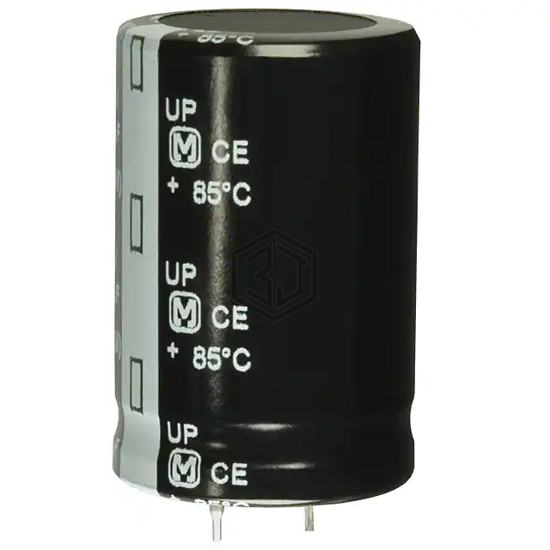

CAP ALUM 3900UF 20% 100V SNAP
ECO-S2AP392DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3900UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 2,379
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 77mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.54 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.221 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP392DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100MXG3900MEFCSN30X45 | Rubycon | CAP ALUM 3900UF 20% 100V SNAP | 90% | View |
| SLPX392M080E5P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 80V SNAP | 85% | View |
| LKS1K392MESB | Nichicon | CAP ALUM 3900UF 20% 80V SNAP | 80% | View |
| ALC80F392BB040 | KEMET | CAP ALUM 3900UF 20% 40V SNAP | 68% | View |
| 25YXG3900MEFC18X31.5 | Rubycon | CAP ALUM 3900UF 20% 25V RADIAL | 63% | View |
| 63MXC3900MEFCSN25X40 | Rubycon | CAP ALUM 3900UF 20% 63V SNAP | 58% | View |
