Panasonic Electronic Components
CAP ALUM 3300UF 20% 100V SNAP

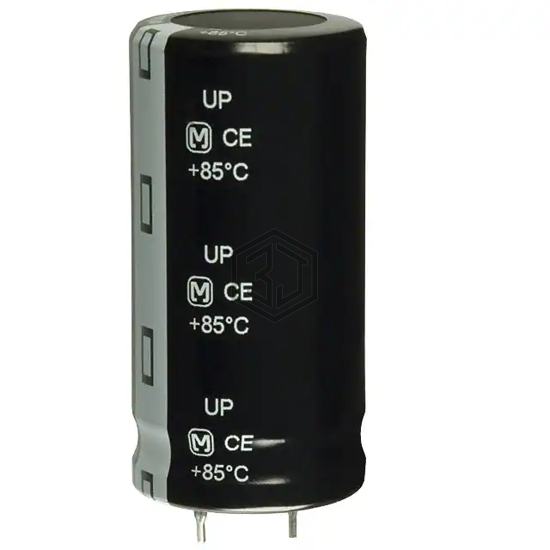

ECO-S2AP332CA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 3300UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 9,143
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 90mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.06 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.669 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP332CA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100MXG3300MEFCSN25X50 | Rubycon | CAP ALUM 3300UF 20% 100V SNAP | 90% | View |
| B41231B338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 80V SNAP | 88% | View |
| LKG1J332MESBBK | Nichicon | CAP ALUM 3300UF 20% 63V SNAP | 73% | View |
| B43305A2338M87 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 200V SNAP | 66% | View |
| 16ZLJ3300MG412.5X30 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 62% | View |
| 678D338M016EN5O | Vishay Sprague | CAP ALUM 3300UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for ECO-S2AP332CA and get a quote within 24 hours.
