Panasonic Electronic Components
CAP ALUM 2700UF 20% 100V SNAP

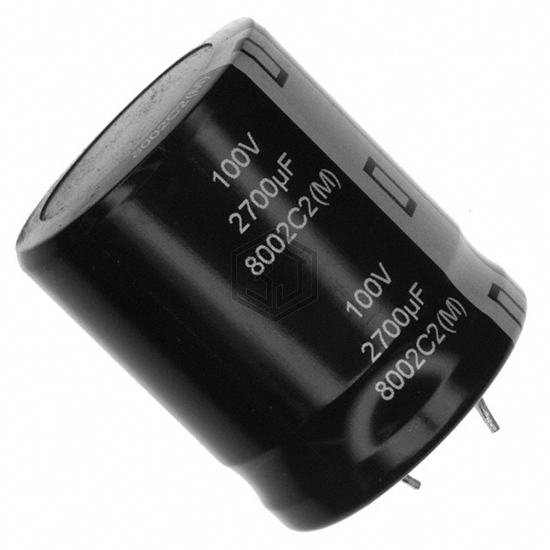

ECO-S2AP272DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2700UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 4,565
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 104mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.71 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.267 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP272DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LX272M100J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2700UF 20% 100V SNAP | 100% | View |
| 100MXG2700MEFCSN30X35 | Rubycon | CAP ALUM 2700UF 20% 100V SNAP | 88% | View |
| LGU1K272MELA | Nichicon | CAP ALUM 2700UF 20% 80V SNAP | 73% | View |
| 25ZLS2700MEFC12.5X35 | Rubycon | CAP ALUM 2700UF 20% 25V RADIAL | 65% | View |
| 860010681029 | Würth Elektronik | CAP ALUM 2700UF 20% 50V RADIAL | 61% | View |
| VHT2700M16 | NTE Electronics, Inc | CAP ALUM 2700UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for ECO-S2AP272DA and get a quote within 24 hours.
