Panasonic Electronic Components

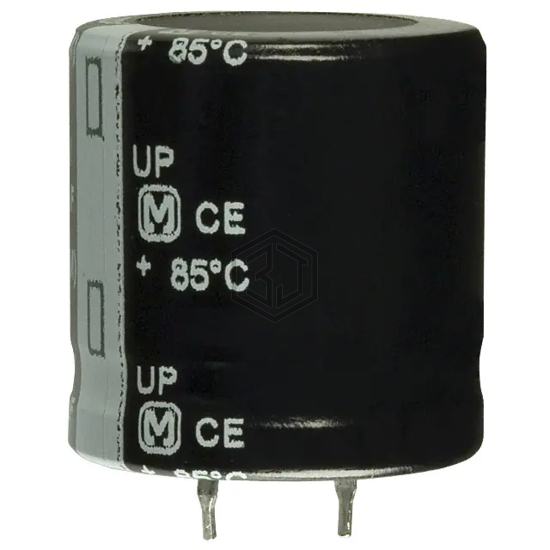

CAP ALUM 2200UF 20% 100V SNAP
ECO-S2AP222DA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 5,640
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 121mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.611 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.181" (30.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP222DA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SLPX222M100E3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 100V SNAP | 98% | View |
| B41231C9228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 100V SNAP | 95% | View |
| LGN2C222MELC35 | Nichicon | CAP ALUM 2200UF 20% 160V SNAP | 79% | View |
| B43640A2228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 67% | View |
| RXW222M1HBK-1836S | SURGE | CAP ALUM 2200UF 20% 50V RADIAL | 66% | View |
| 380LQ222M160K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 160V SNAP | 61% | View |
Submit your RFQ for ECO-S2AP222DA and get a quote within 24 hours.
