Panasonic Electronic Components
CAP ALUM 1500UF 20% 100V SNAP

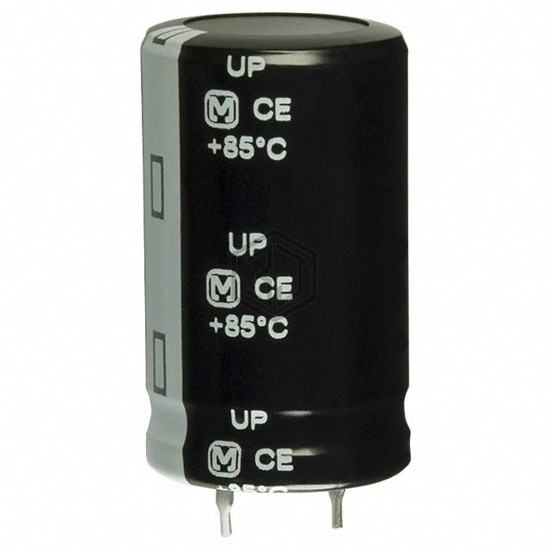

ECO-S2AP152BA is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 1500UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 6,824
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 155mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.57 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.956 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
ECO-S2AP152BA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESMH101VNN152MR25U | United Chemi-Con | CAP ALUM 1500UF 20% 100V SNAP | 99% | View |
| LKS2A152MESA | Nichicon | CAP ALUM 1500UF 20% 100V SNAP | 98% | View |
| EGXF800ELL152MM40S | United Chemi-Con | CAP ALUM 1500UF 20% 80V RAD TH | 86% | View |
| SLP152M080A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 80V SNAP | 72% | View |
| 53D152G063HJ7 | Vishay Sprague | CAP ALUM 1500UF 63V AXIAL | 70% | View |
| 35YXH1500MEFCG412.5X35 | Rubycon | CAP ALUM 1500UF 20% 35V RADIAL | 69% | View |
Submit your RFQ for ECO-S2AP152BA and get a quote within 24 hours.
